Shenzhen Birmin Technology Co., Ltd was established in 2013 and is located in Shenzhen, China. It is one of the leading printed circuit board (PCB) manufacturing suppliers in the country. The company offers comprehensive one-stop electronic manufacturing services, including PCB fabrication, component sourcing, PCB assembly, and testing.
Currently, Birmin has gradually expanded its production capacity to 50,000 square meters per month. Their product range includes PCB prototypes, HDI PCBs, multilayer PCBs, thick copper PCBs, high-frequency PCBs, LED aluminum PCBs, and more.
Birmin is a trusted PCB manufacturer in China, renowned for its expertise in PCB manufacturing, testing, and after-sales services. With a state-of-the-art factory, we uphold stringent quality control measures to ensure the production of top-notch circuit boards. Our extensive product range encompasses various PCB types, including prototypes, HDI, multilayer, thick copper, high-frequency, and LED aluminum PCBs.

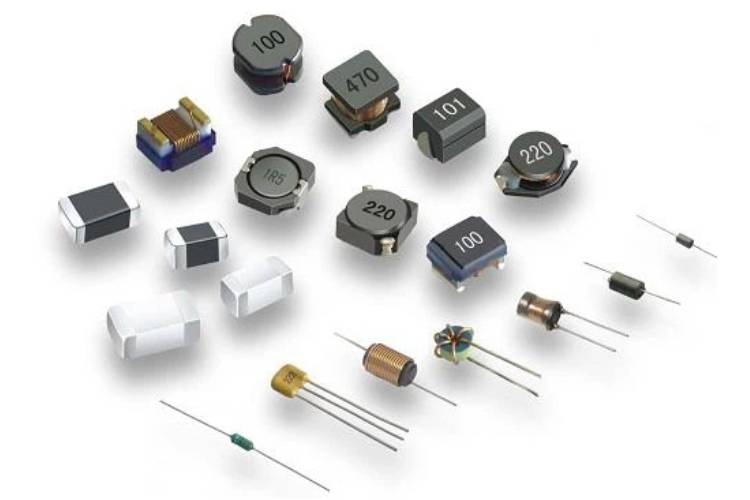

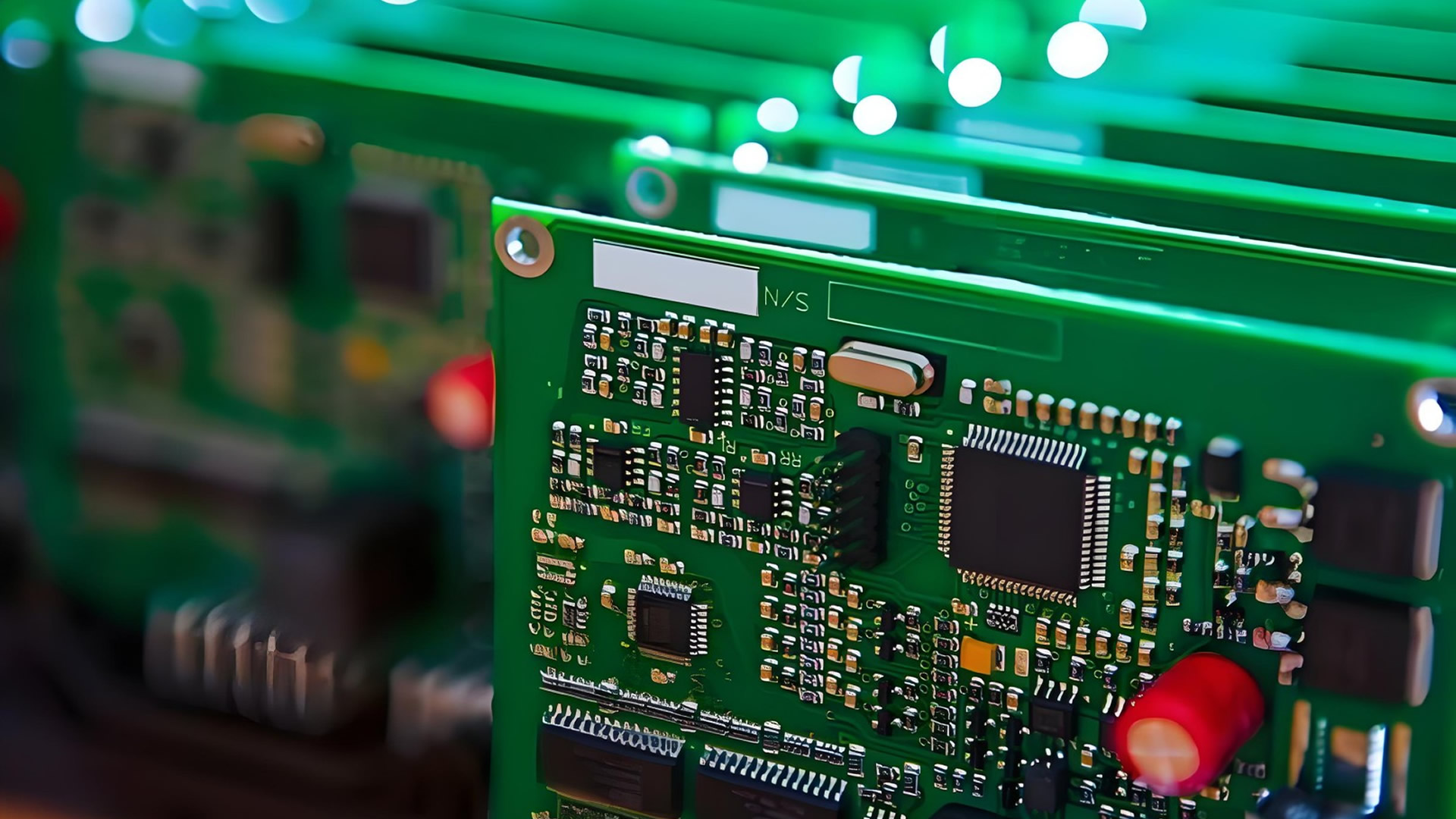

We procure electronic components to ensure quality and reliability during PCB assembly. With established partnerships with major suppliers, we can quickly obtain required components. Sample confirmation is provided as per customer requirements, and strict quality control measures are implemented for all components.

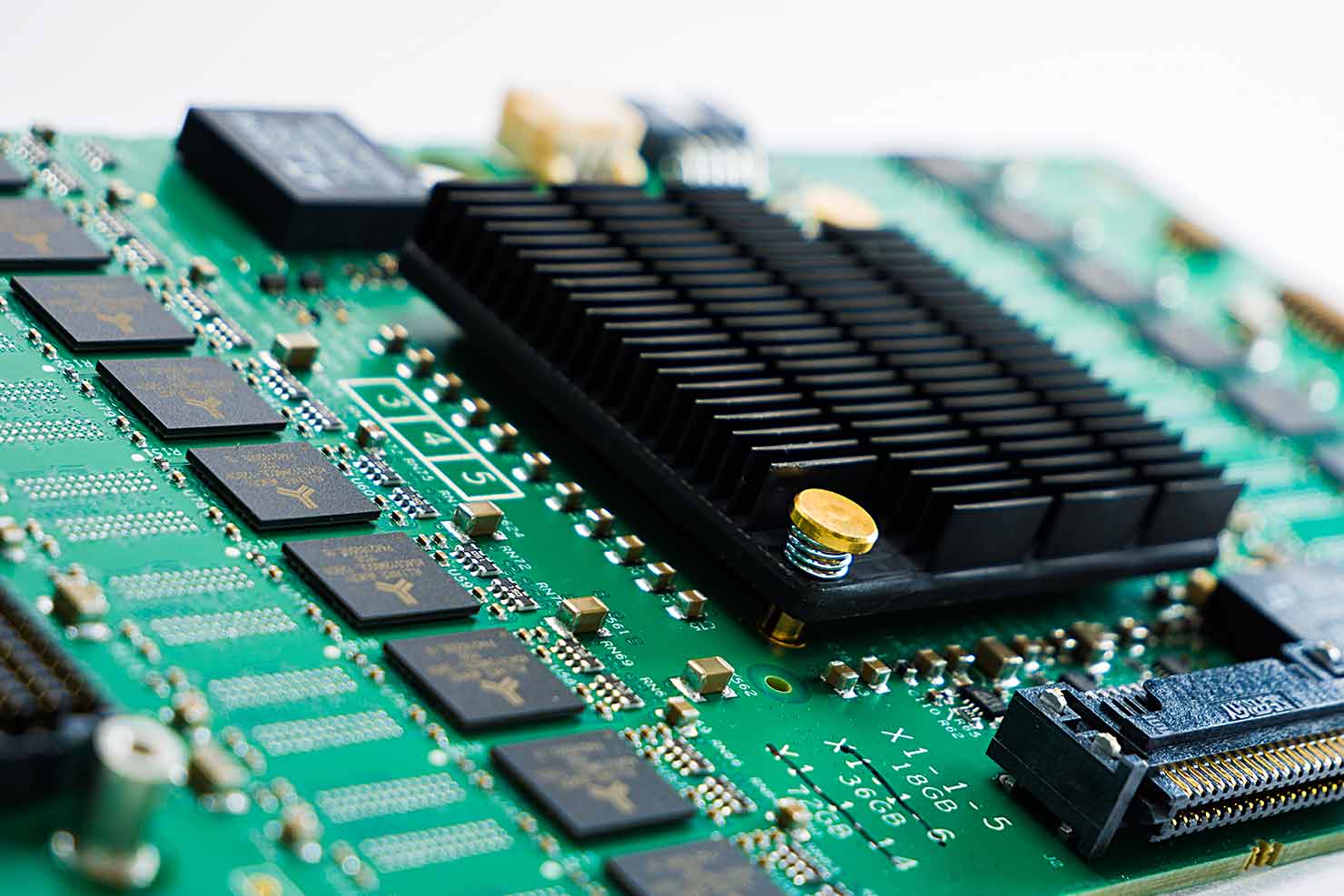

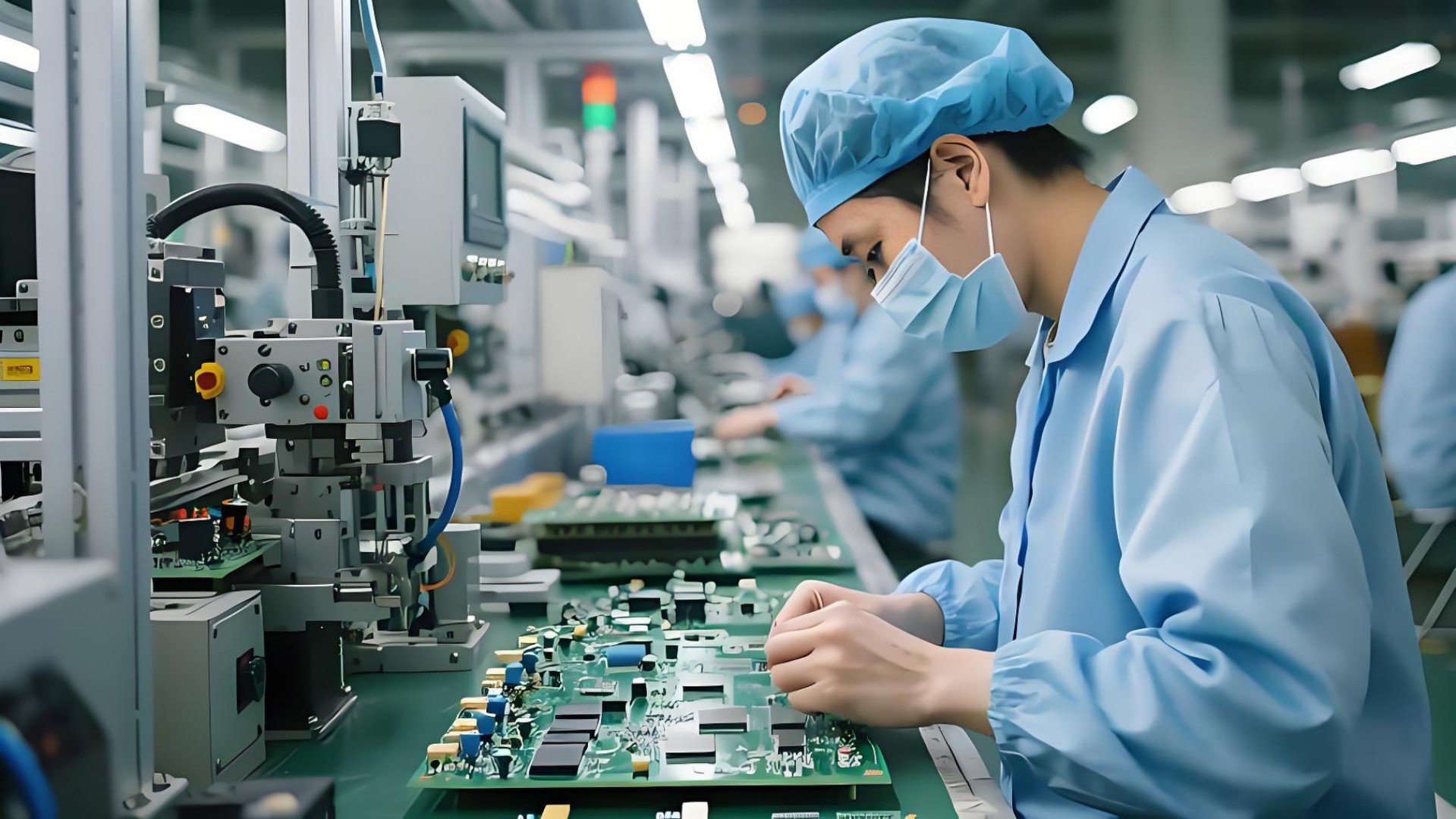

Birmin provides turn-key PCB assembly services for prototypes or low to mid-volume production runs. We manage the entire process, including component ordering, PCB manufacturing, assembly, testing, and final shipment.
One-stop service
Birmin provides PCB manufacturing service from design to testing, saving you time and cost.
Quality assurance
Certified by ISO, UL and RoHS, with 100% inspection for each PCB.
On-time delivery
Advanced equipment speeds up manufacturing time, ensuring we meet your project schedule.
Excellent customer service
Quick response within 24 hours and worry-free return and refund service.
Professional team
multiple engineers providing technical support.
Competitive prices
In-house manufacturing allows cost and quality control, and stable supply chain controls raw material costs.
Take advantage of our network and see what Birmin Technology can do for you.
Buried via PCBs, also known as blind via PCBs, are used in various products that require high-density circuitry and multiple layers. Here are some common product areas where buried via PCBs are utilized:Mobile Communication Devices: Buried via PCBs are widely used in smartphones, tablets, smartwatch
